Application - MAX7219, Serially Interfaced, 8-Digit LED Display Drivers (scrolling text)

出自flip the world

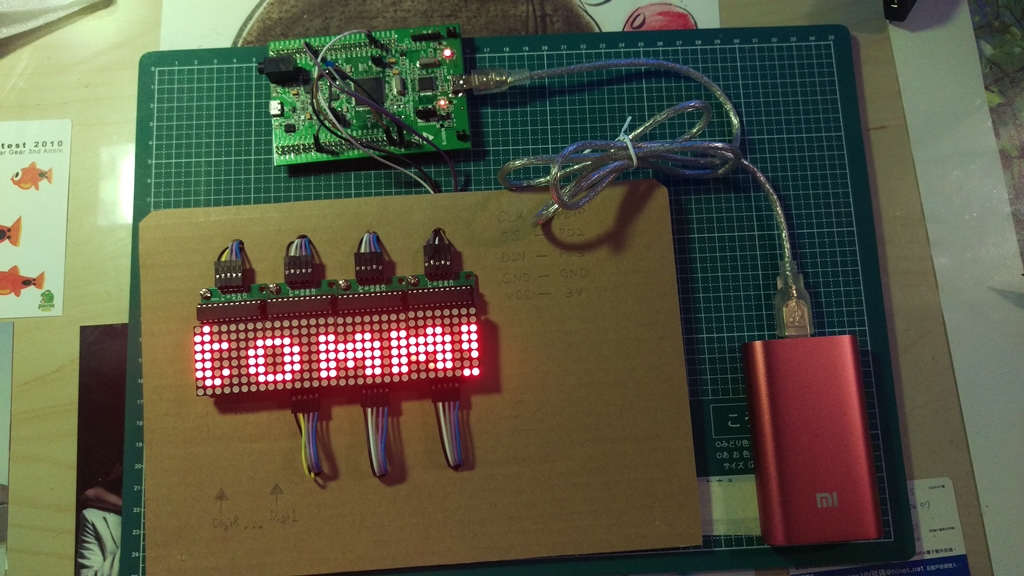

DIY the board

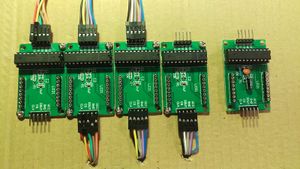

MAX7219 based board

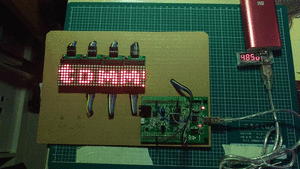

MAX7219-scrolling@STM32F4-Discovery

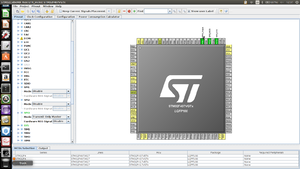

MAX7219-scrolling@STM32F4Cube

HW connection

STM32F4      --  MAX7219
VCC          --  VCC(3.3V)
GND          --  GND
PC12(MOSI)   --  DIN
PD1          --  CS
PC10         --  CLK
